In injection molding, screw and barrel clearance refers to the gap between the outer diameter of the screw flight and the inner wall of the barrel. This seemingly small spacing plays a critical role in plasticizing efficiency, part quality, and the service life of the machine. Too much or too little clearance can lead to serious performance issues or even equipment damage.
Let’s explore why injection molding screw and barrel clearance matters, how it’s measured, and what the ideal range is.
🔧 What Is Screw and Barrel Clearance?
The clearance is typically 0.1 mm to 0.3 mm, depending on the screw diameter, material, and processing temperature. It ensures:
- Smooth rotation without metal-to-metal contact
- Proper pressure buildup for plasticizing
- Controlled backflow and shear
- Thermal expansion allowance
As noted by Plastics Technology, improper clearance increases shear heat, leakage, and unmelted particles.
📏 Ideal Clearance Range by Screw Size
| Screw Diameter (mm) | Typical Clearance (mm) |
|---|---|
| 25 – 35 | 0.08 – 0.12 |
| 36 – 55 | 0.10 – 0.15 |
| 56 – 80 | 0.12 – 0.20 |
| 81 – 120 | 0.15 – 0.25 |
Clearance increases slightly for high-temperature resins (e.g. PEEK, PC), or when processing glass-filled or abrasive materials.
⚠️ What Happens If Clearance Is Wrong?
Too Tight:
- Screw may seize when heated
- Excessive friction and wear
- Risk of scoring barrel inner wall
- High energy consumption
Too Loose:
- Melt backflow and pressure loss
- Inconsistent part weight
- Unmelted resin, black spots
- Premature product degradation
🛠️ How to Measure Screw and Barrel Clearance
- Disassemble screw and barrel
- Use feeler gauges to check the gap between screw flight and barrel wall
- Measure at multiple points along the barrel length
- Compare against OEM specs or wear limits (typically if clearance > 1.5× original, it’s time to replace)
Or refer to our Screw Barrel Wear Inspection Guide.
🏭 OEM Clearance Standards
Leading machine brands like Haitian, Arburg, Engel, Chen Hsong, and KraussMaffei have specific clearance tolerances. Screw and barrel manufacturers such as Zhoushan Juyuan Machinery Co., Ltd. ensure these specs are met during production.
We design screw-barrel assemblies for:
- Haitian MA/SA/JU series
- Engel Victory/Duo
- Arburg Allrounder
- JSW and Sumitomo Demag
See Machine Compatibility Models.
🔩 What Affects Clearance Over Time?
- Material wear from abrasive fillers (e.g., 30% GF, flame-retardants)
- Chemical corrosion (e.g., PVC, halogen-based resins)
- Thermal expansion cycles (long running time at high temp)
- Improper purging or cleaning techniques
A bimetallic barrel can reduce wear by up to 70% compared to standard nitrided barrels (Barrelize).
✅ How to Maintain Proper Clearance
- Use high-quality materials like 38CrMoAlA or SKD61
- Choose bimetallic barrels for corrosive or abrasive resins
- Perform regular clearance checks (every 6–12 months)
- Purge properly to avoid carbon buildup
- Replace barrel or screw when clearance exceeds wear limit
Need guidance? Visit our Maintenance Guide.
🌐 Authoritative External Links
- Plastics Technology – Evaluating Barrel and Screw Wear
- Barrelize – Screw & Barrel Materials and Design
- Dynisco – Clearance and Wear Measurement

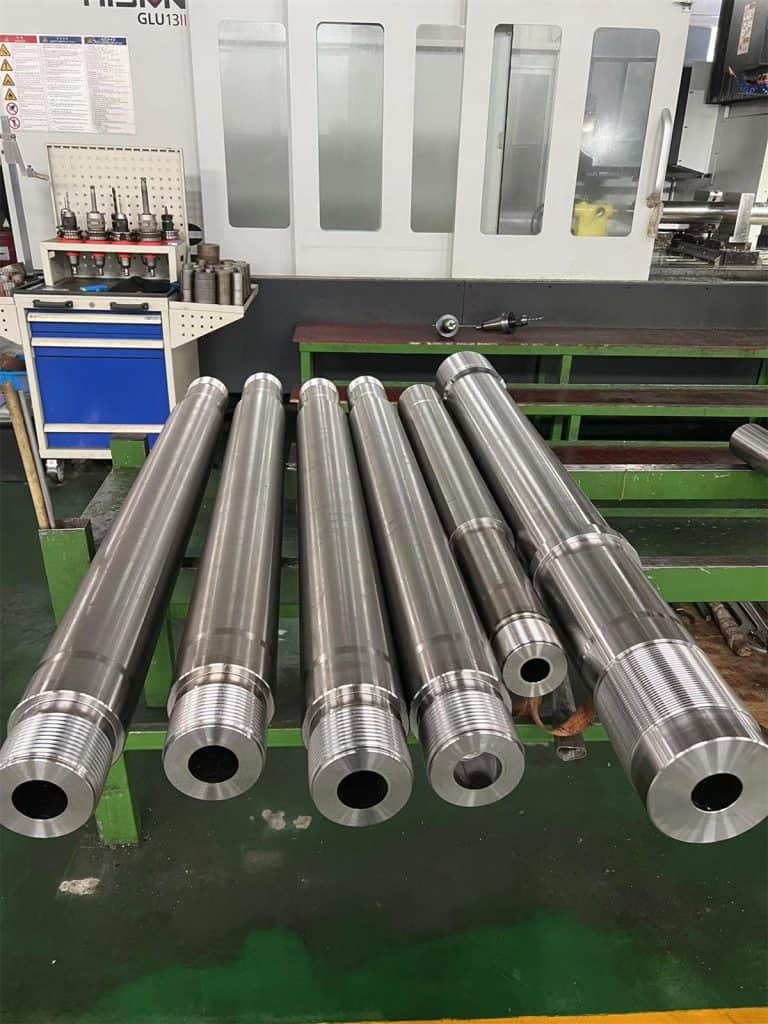

📞 Need a New Screw and Barrel with Precision Clearance?
Zhoushan Juyuan Machinery Co., Ltd. specializes in manufacturing injection molding machine screws and barrels with tight tolerances, durable materials, and custom-fit to your machine model.
We help customers reduce clearance-related issues and improve overall plasticizing performance.
