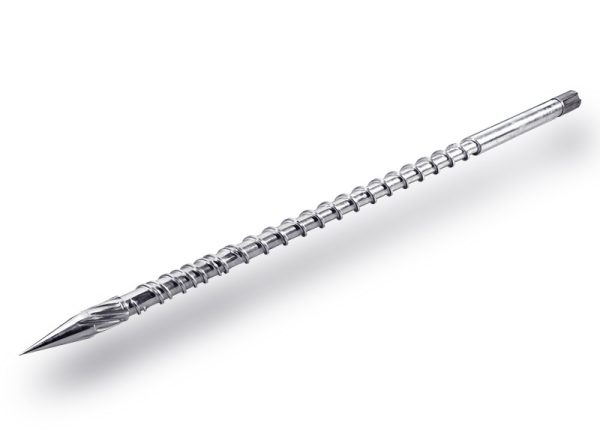

60mm Alloy Screw and Barrel for injection molding machine
Specification
（Mould Clamping Force）:250~3200KN,（Shot Weight）30~80000g
（Diameter of screw）: φ20mm~φ300mm
Screw can be matched with different heads, and barrel can be matched with different nozzles.
- Brand Name:Batten
- Material:38CrMoAlA
- Process:Bimetallic
- Hardening Hardness:HB280-320
- Nitrided Hardness:HV900-1000
- Nitrided Case Depth:0.45-0.8mm
- Nitrided Brittleness:Less than Grade 2
- Surface Roughness:Ra 0.4
- Screw Straightness:0.015mm
- Guarantee:One year
- Application:bimetallic injection JSW barrel and screw
Application
House holding / Pipe fittings and other plastic injection products
