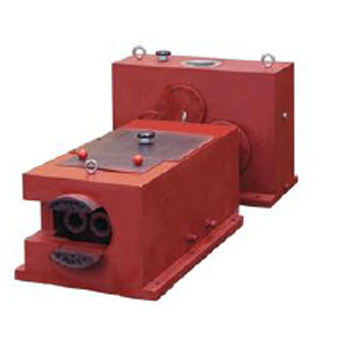

Conical Twin Screw Extruder Gearbox by JUYUAN
This range of conical twin screw extruder gearboxes offers a selection of models designed for use in screw extrusion machinery. Featuring varying input speeds, output speeds, and power ratings, these gearboxes support different torque requirements and shaft configurations.
| Parameter | Specification |
|---|---|
| SZ45 — Input speed (r/min) | 1500 |
| SZ50 — Input speed (r/min) | 1500 |
| SZ55 — Input speed (r/min) | 1500 |
| SZ65 — Input speed (r/min) | 1500 |
| SZ80 — Input speed (r/min) | 1500 |
| SZ92 — Input speed (r/min) | 1500 |
| SZ45 — Output speed (r/min) | 44.8 |
| SZ50 — Output speed (r/min) | 37.8 |
| SZ55 — Output speed (r/min) | 37.5 |
| SZ65 — Output speed (r/min) | 39.1 |
| SZ80 — Output speed (r/min) | 37.7 |
| SZ92 — Output speed (r/min) | 40 |
| SZ45 — Input power (kW) | 18.5 |
| SZ50 — Input power (kW) | 22 |
| SZ55 — Input power (kW) | 30 |
| SZ65 — Input power (kW) | 37 |
| SZ80 — Input power (kW) | 55 |
| SZ92 — Input power (kW) | 110 |
| SZ45 — Single shaft output torque (unit not stated) | 1972 |
| SZ50 — Single shaft output torque (unit not stated) | 2279 |
| SZ55 — Single shaft output torque (unit not stated) | 3820 |
| SZ65 — Single shaft output torque (unit not stated) | 4518 |
| SZ80 — Single shaft output torque (unit not stated) | 6786 |
| SZ92 — Single shaft output torque (unit not stated) | 13130 |
| SZ45 — Distributor shaft included angle | 2°36′ |
| SZ50 — Distributor shaft included angle | 2°58′12″ |
| SZ55 — Distributor shaft included angle | 2°36′14″ |
| SZ65 — Distributor shaft included angle | 2°11′16″ |
| SZ80 — Distributor shaft included angle | 2°0′18″ |
| SZ92 — Distributor shaft included angle | 1°52′3.64″ |
| SZ45 — Connecting spline dimensions (source notation) | 8-78*42*8 |
| SZ50 — Connecting spline dimensions (source notation) | 8-54*45*9 |
| SZ55 — Connecting spline dimensions (source notation) | 6-60*53*14 |
| SZ65 — Connecting spline dimensions (source notation) | 8-65*56*10 |
| SZ80 — Connecting spline dimensions (source notation) | 8-72*62*12 |
| SZ92 — Connecting spline dimensions (source notation) | 10-98*92&14 |
Contact us to discuss your required model and specifications.
